601013

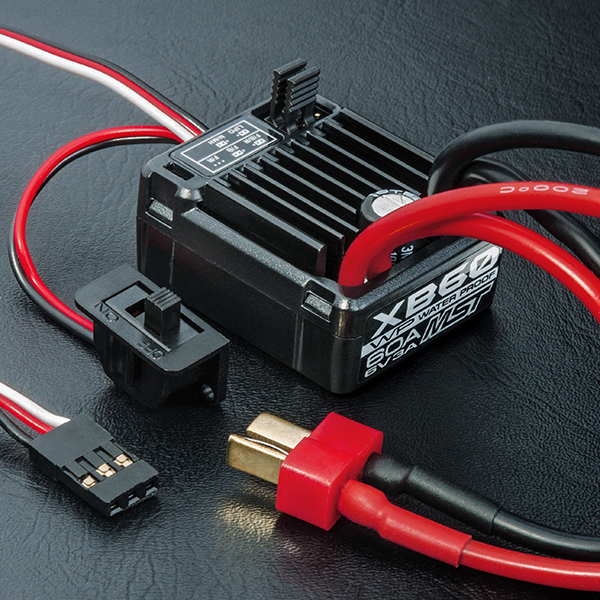

XB60 Brushed ESC
SPECIFICATION
Cont. / Burst Current | Forward : 60A / 360A ; Backward : 30A / 180A | |
Input | 2-3S Lipo, 5-9 cells NiMH | |
Cars Applicable | 1:10 on-road, off-road Buggy, Truggy, SCT, Crawler, Tank | |
Motor Turns | 4-6cells NiMH or 2S Lipo | 540 or 550 size motor ≧ 8T or RPM , 45000 @ 7.2V |
8-9cells NiMH or 3S Lipo | 540 or 550 size motor ≧ 8T or RPM , 30000 @ 7.2V | |
Resistance | Fwd : 0.0008 Ohm, Bwd : 0.0016 Ohm | |
Buit-in BEC | 5V / 3A ( Linear mode BEC ) | |
RWM Frequency | 1KHz | |
Dimension & Weight | 36 X 30 X 18, 40g |
FEATURES
▬ | Water-resistant and dust-proof for all weather races. |
▬ | Small size with built-in capacitor module. |
▬ | Automatic throttle range calibration, easy to use. |
▬ | Multiple protections : Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection. |
▬ | Easily programmed with the jumpers. |
