601013-1

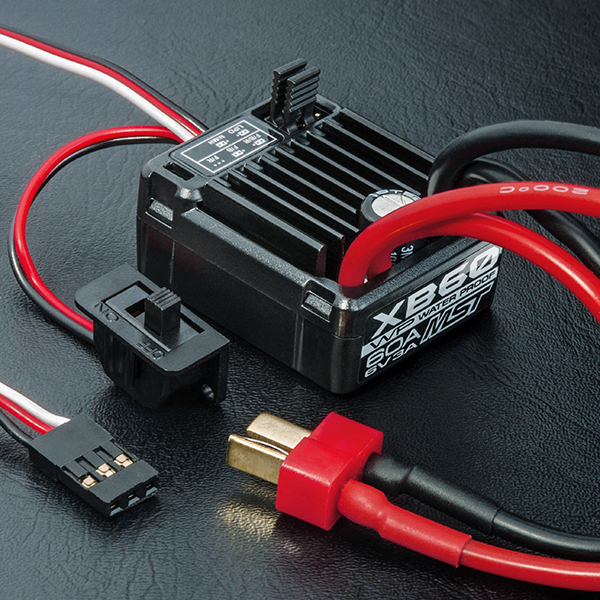

XB60 Brushed ESC (long-wire)

SPECIFICATION



Cont. / Burst Current		Forward : 60A / 360A  ;  Backward : 30A / 180A
Input		2-3S Lipo, 5-9 cells NiMH
Cars Applicable		1:10 on-road, off-road Buggy, Truggy, SCT, Crawler, Tank
Motor Turns	4-6cells NiMH or 2S Lipo	540 or 550 size motor ≧ 8T or RPM , 45000 @ 7.2V
	8-9cells NiMH or 3S Lipo	540 or 550 size motor ≧ 8T or RPM , 30000 @ 7.2V
Resistance		Fwd : 0.0008 Ohm, Bwd : 0.0016 Ohm
Buit-in BEC		5V / 3A ( Linear mode BEC )
RWM Frequency		1KHz
Dimension & Weight		36 X 30 X 18, 40g





FEATURES



▬	Water-resistant and dust-proof for all weather races.
▬	Small size with built-in capacitor module.
▬	Automatic throttle range calibration, easy to use.
▬	Multiple protections : Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection.
▬	Easily programmed with the jumpers.
