841003

LSD 2.0 S Gyro

SPECIFICATION

For

FXX-D  (RTR)

XXX-D  (RTR)

MS-01D  (RTR)

XXX-RA

XXX-R

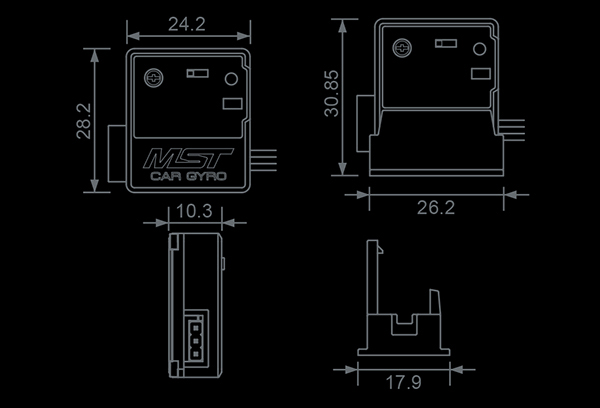

Dimension	28.2 × 24.2 × 10.3mm
Weight	7.0g (0.285 oz) with plastic Case 4.8g (0.169 oz) w/o plastic Case
Power Supply	4.8 - 6.0 Volts
Current Drain	10mA (4.8V)
Operating Temperature	-20°C to +85°C
Stepless adjustment sensitivity



FEATURES



LSD 2.0 gyro is a specific and completed gyro for RC cars. MST integrates parameters by many events and practices into development. The LSD 2.0 gyro makes car drift smoothly and naturally in curves. It shows amazing balance between car controlling and gyro supporting for beautiful dynamic and stability in different curves.

▬	NEUTRAL AUTOMATIC LOCK FUNCTION The LSD 2.0 gyro is able to auto-lock the neutral point to ensure servo correct position at any time. You do not have to adjust the neutral by hands as traditional gyros!
▬	CONSIDERATE OF FUNCTION FOR FORWARD AND REVERSE ROTATION CHANGE You can change the rotation by  switch instead of changing gyro position and direction. More choices to set it up!
▬	SERVO PROTECTION SETTING Unique design for servo maximum &minimum travel setting , this feature prevent  from over-heating when servo exceed its limitation  and extend the life of servo further.
▬	WIRELESS CH3/CH4 SENSITIVITY ADJUSTMENT ( RS Version ) The LDS 2.0 gyro supports direct sensitivity adjustment by remote transmitter. You can adjust the volume by digital display accurately and promptly get the best control way in different places!
▬	UNIQUE REMOVABLE GYRO BASE The unique base latch design is convenient for removing. The big fitting base applies to more locations for different track.
▬	JAPANESE SENSE-ELEMENT The sense-element of LSD 2.0 gyro is from Japanese muRata which also apply for the real car.
