841001

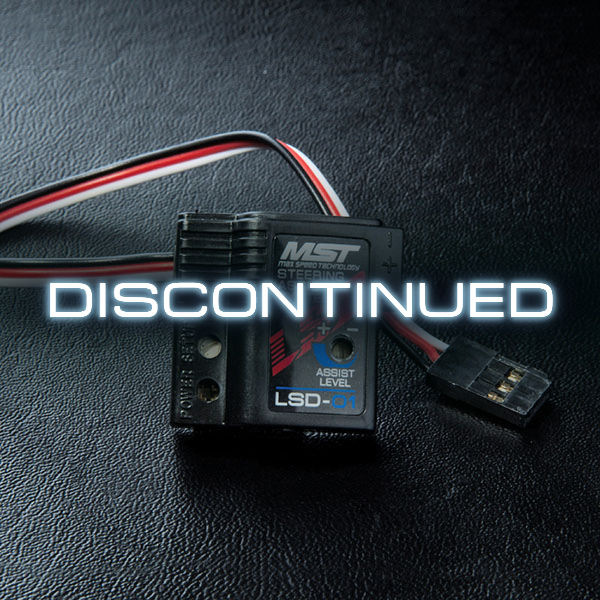

LSD-01 Gyro
SPECIFICATION
For
ALL
Dimension
26.0 X 27.0 X 11.3mm
Weight
7.0g (0.285 oz) with plastic Case
4.8g (0.169 oz) w/o plastic Case
Power Supply
4.8 - 6.0 Volts
Current Drain
10mA (4.8V)
Gain Adjustment
single rate.non-remote
Operating Temperature
-5°C to +60°C
Applicable R/C System
GWS, Futaba, JR, Airtronics, Sanwa, Hitec, Multiplex
Dimension | 26.0 X 27.0 X 11.3mm |
Weight |
7.0g (0.285 oz) with plastic Case 4.8g (0.169 oz) w/o plastic Case |
Power Supply | 4.8 - 6.0 Volts |
Current Drain | 10mA (4.8V) |
Gain Adjustment | single rate.non-remote |
Operating Temperature | -5°C to +60°C |
Applicable R/C System | GWS, Futaba, JR, Airtronics, Sanwa, Hitec, Multiplex |
FEATURES
The ultra-light weight and incredible compact size, simple and easy for installation and adjustment are characteristic of this gyro. Install “receiver →LSD-01 → servo” sequentially to finish installation. A unique red and green LED indicator system simplifies gyro setup and gyro direction indication to let user adjust the servo deviation easily and quickly. User can adjust the servo sensitivity without changing the neutral.
Even novice can install and operate it easily.
|
