AKM Alum. upright (2WD)
2015-05-26

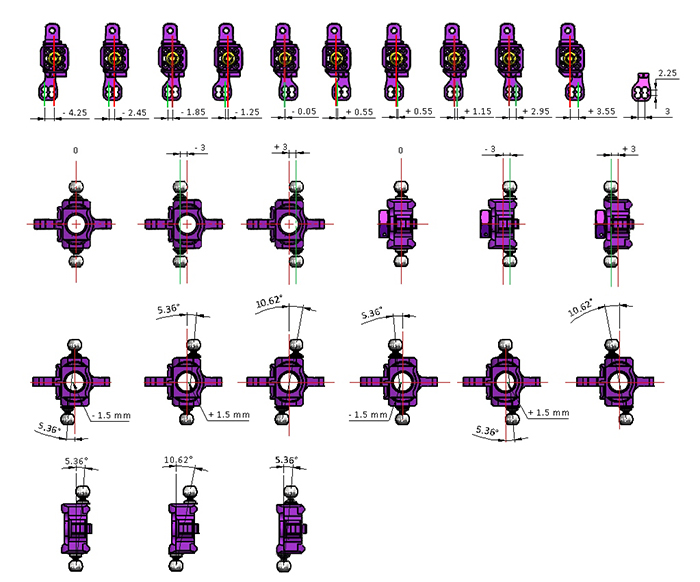

Unique patent AKM upright supports 20 sets Ackermann steering adjusting options. The amazing five-segment
deviation steering arm design with quickly adjustable four-way position holes by competition event let user having
different adjust method to set steering more precisely.

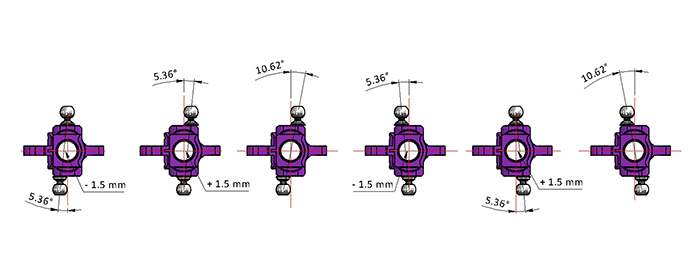

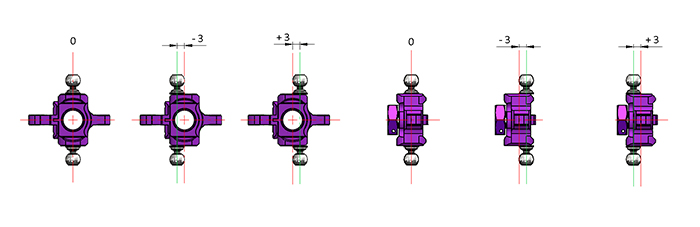

The new designed AKM upright has total 18 kingpin snaps to top and bottom. Besides the traditional coaxial king pin, you can
set inside & outside, front &rear coaxial deviations easily. Its nine kinds of setting combination meet to your needs.
AKM upright has abundant top and bottom total 18 kingpin snaps and can change kingpin coaxial deviation set freely. It also
supports steering snap for high and low selections. Its deviation angle changed by upright axle is unachievable to the traditional
upright!

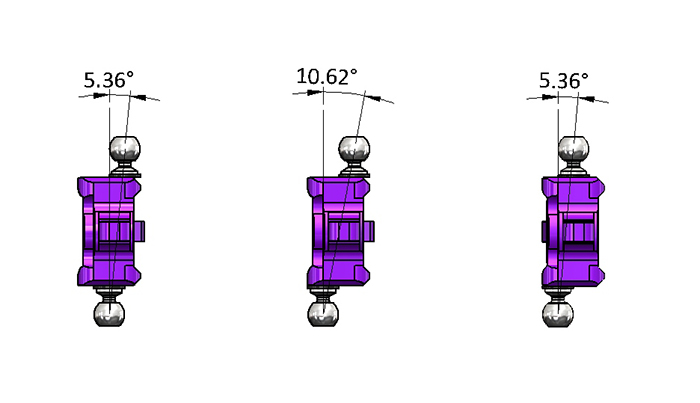

The AKM upright is adjustable to 9 sets KPI angles. It can generate steering change and traction as real car, to achieve the
performance and verisimilitude that RC car is pursuing!
