The subparts of new RMX 2.0 spur gearbox driving set
2021-05-18

The subparts of new RMX 2.0 spur gearbox driving set

Part number

210646BK RMX 2.0 spur gearbox driving set (black)

The gearbox driving set is combined by the multiple parts as listed

http://www.rc-mst.com/product_info.php?class_sn=15&class_sn2=41&sn=3616

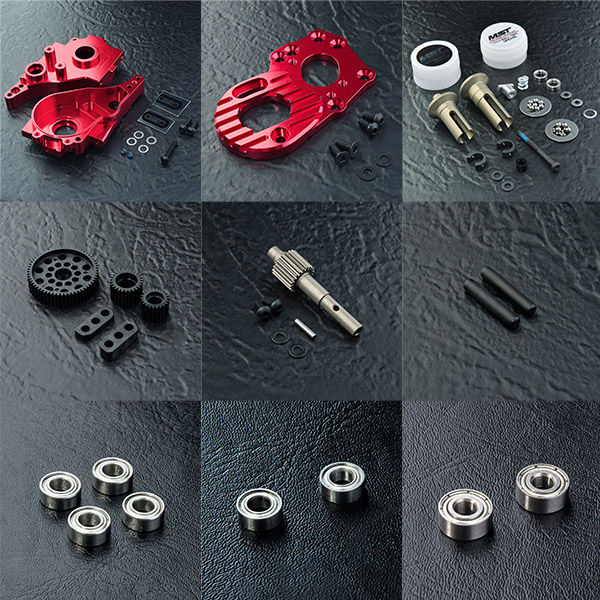

The subparts of the new RMX 2.0 spur gearbox driving set

210642BK/R RMX 2.0 alum. spur gearbox set (black/red) x1
210643BK/R RMX 2.0 alum. spur gearbox motor heat sink mount (black/red) x1
210644 RMX 2.0 alum. spur gear ball diff. set x1
310118 Alum. main shaft 48P 20T x1
310119 4X21 Steel center shaft (2) x1
230135 Idler gear set & ball diff. gear x1
120002 Ball bearing 5X10 (4) x1
120018 Ball bearing 4X10X4 (2) x1
120013 Ball bearing 4X8X3 (2) x1

210642R  RMX 2.0 alum. spur gearbox set (red)



210643R  RMX 2.0 alum. spur gearbox motor heat sink mount (red)



210644   RMX 2.0 alum. spur gear ball diff. set



310118   Alum. main shaft 48P 20T



310119   4X21 Steel center shaft (2)



230135   Idler gear set & ball diff. gear



120002   Ball bearing 5X10 (4)



120018   Bearing 4X10X4 (2)



120013   Ball bearing 4X8X3 (2)
