532161

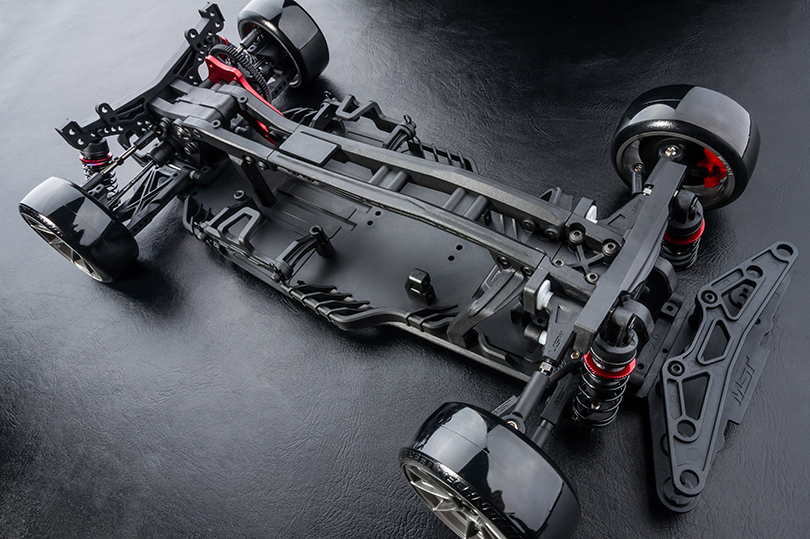

RMX 2.0 S 1/10 RWD HIGH PERFORMANCE DRIFT CAR

SPECIFICATION

WHEELBASE :  257mm

WIDTH :  190mm

DRIVE MODE :    RWD

CASTER:    adjustable  6 / 8 / 10 / 12 degree

CAMBER:     adjustable  0 to -12 degree

FULL BALL BEARING

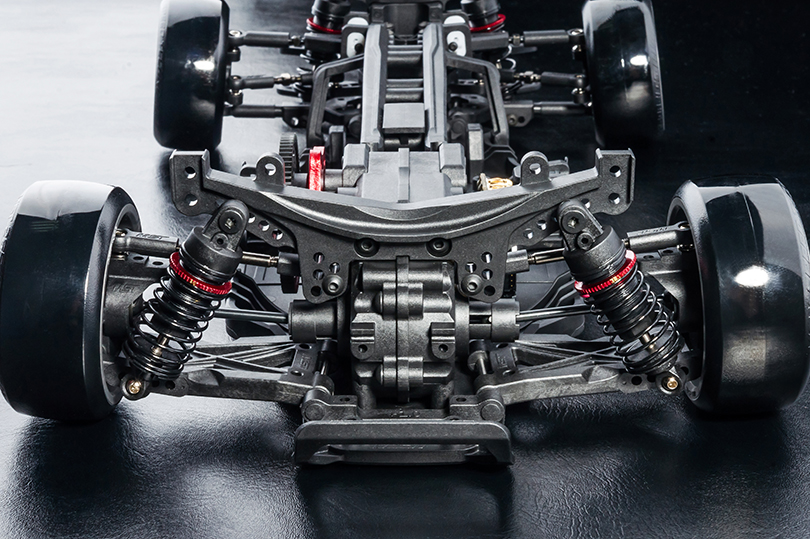

HYDRAULIC DAMPER SET



FEATURES

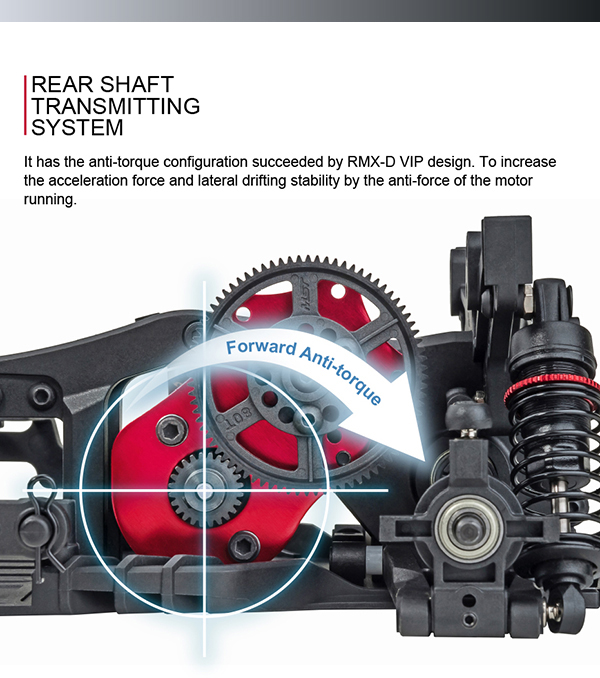

■ Two install methods of motor mount – upper or lower gravity deployment

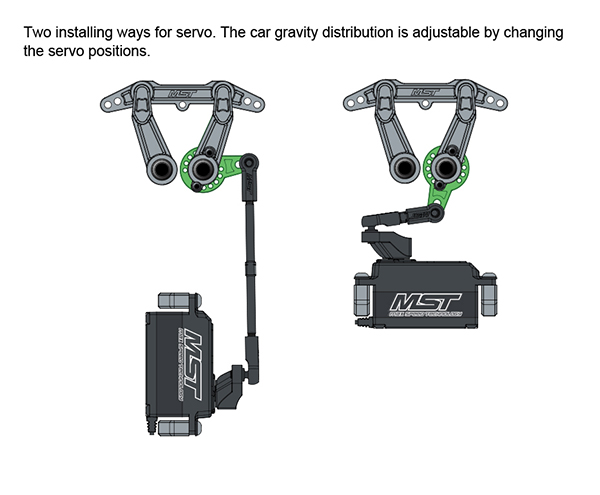

■ Two install methods of servo – vertical or lateral deployment

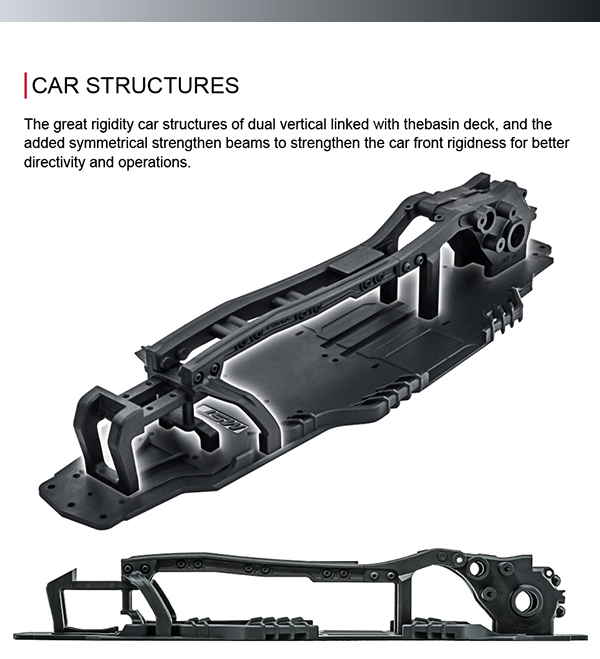

■ Plastic high rigidity constructions

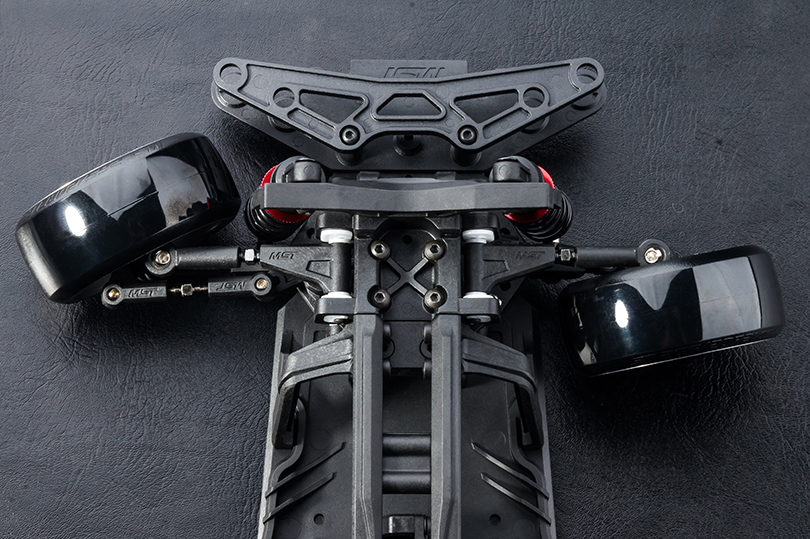

■ New designed front great-steering suspenstion system

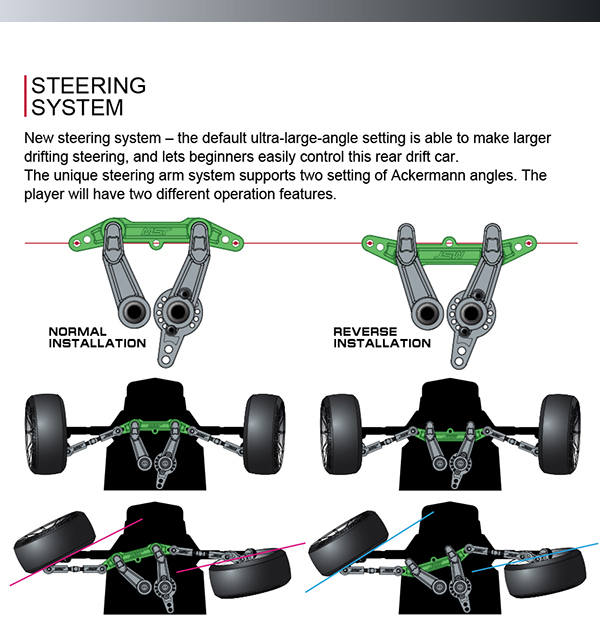

■ The adjustable steering system for two-step Ackermann changes

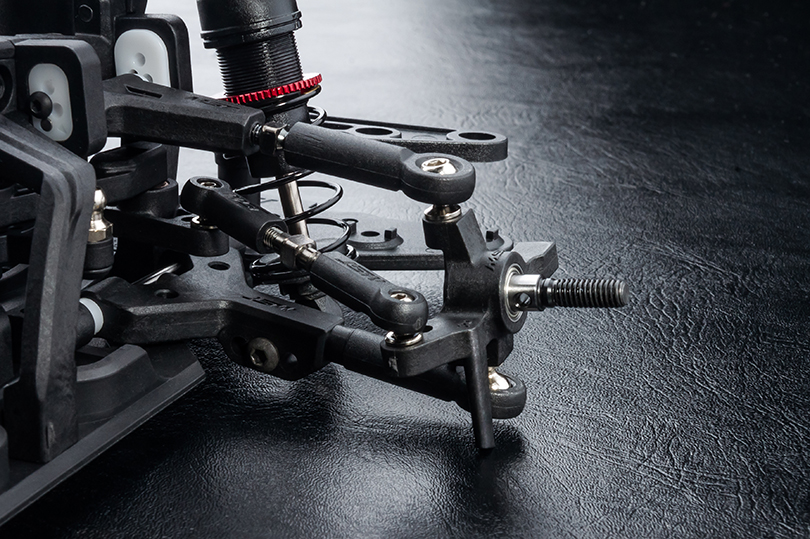

■  6 degrees KPI steering upright, and -0.5 towing distance axle design

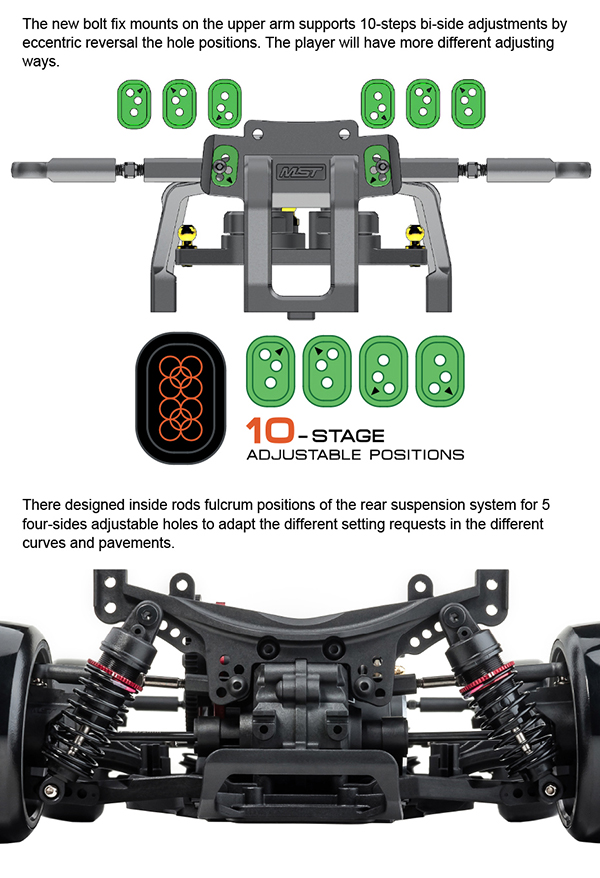

■ New designed inside rods fulcrum mount at the front upper arm is adjustable for 10-step highness and both sides positions

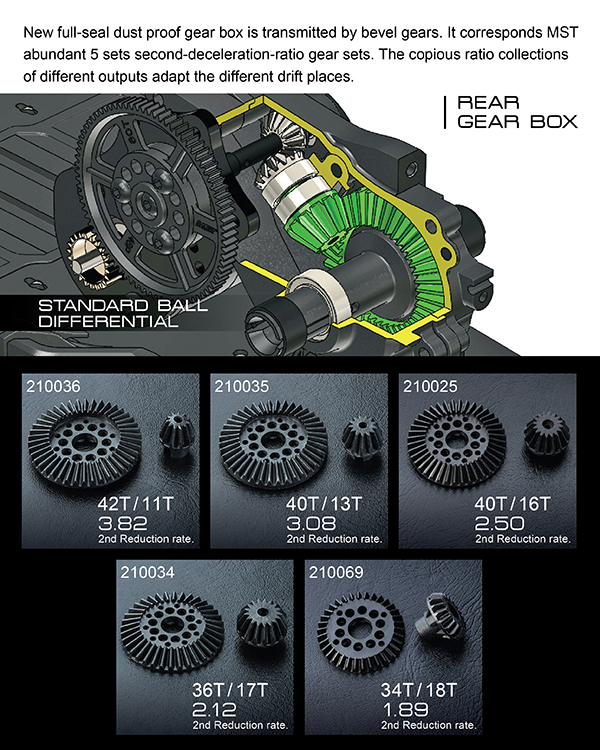

■ New full-sealed dustproof gear box is transmitted by bevel gears

■ Standard ball differential

■ 5 changeable second-deceleration-ratio gear sets of 1.89-3.82 (standard 3.08)

■ The fulcrum at the rear suspension upper rod is 5-step adjustable on both sides. The outer fulcrum is 4-step adjustable on both sides

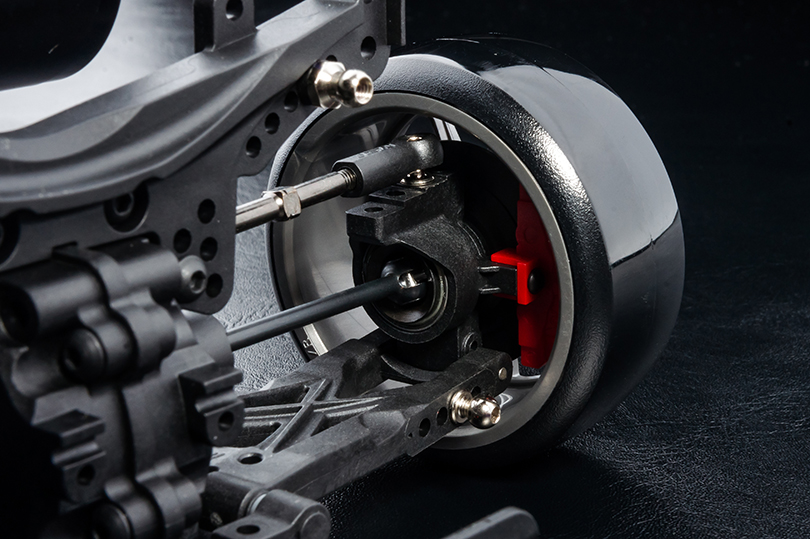

■ Steel CVD axle of rear transmission system

■ Suitable for long and short battery

■ Full turnbuckles

■ Full great smooth metal ball connectors

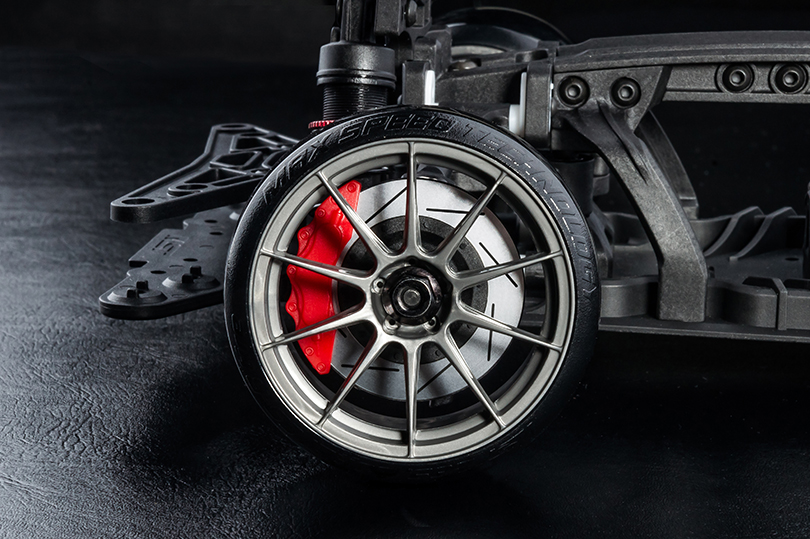

■ Standard realistic caliper and disc shape brake set
