532188

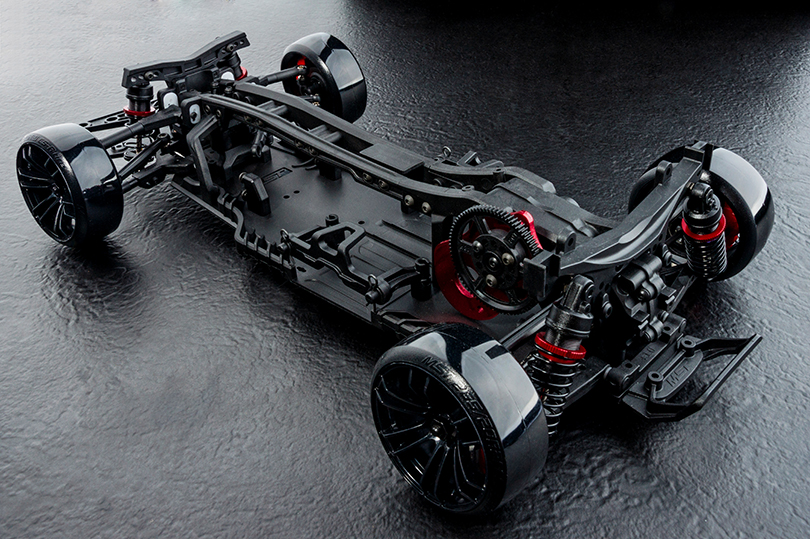

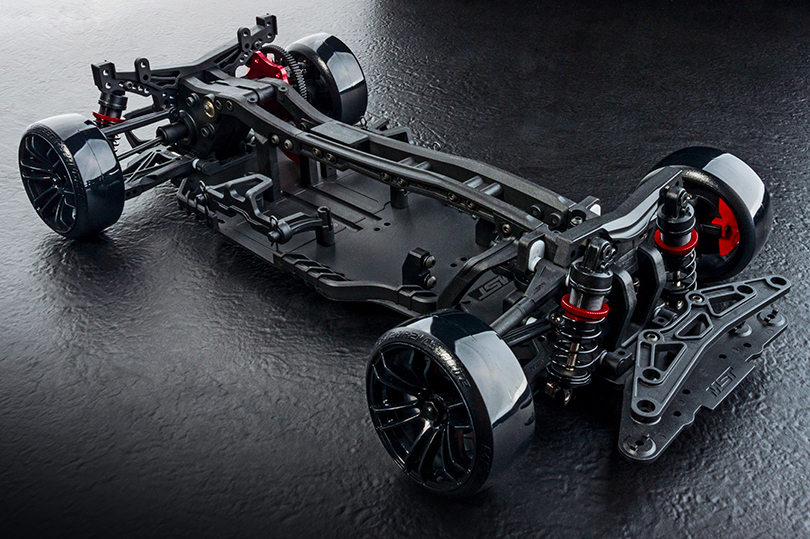

RMX 2.0 1/10 scale RWD Electric Shaft Driven Car KIT

SPECIFICATION

Size :  1 : 10 Drift Car

Wheelbase :  257mm

Hex to hex width : F177mm / R170mm

Drive mode :  RWD

Caster :  adjustable 6 / 8 / 10 / 12 degree

Bearing :  Full ball bearing transmission system

Damper :  Hydraulic damper set

This version is without electric components. The model is



disassembled RMX 2.0 RTR and transparent shell.

Electronics are not included. Photos are for reference only.

FEATURES

‧ Two install methods of motor mount – upper or lower gravity deployment

‧ Two install methods of servo – vertical or lateral deployment

‧ Plastic high rigidity constructions

‧ New designed front great-steeringsuspenstion system

‧ The adjustable steering system for two-stepAckermannchanges

‧ 6 degrees KPI steering upright, and -0.5 towing distance axle design

‧ New designed inside rods fulcrum mount at the front upper arm is adjustable for for 10-step highness and both sides positions.

‧ New full-sealed dustproof gear box is transmitted by bevel gears.

‧ 5 changeable second-deceleration-ratio gear sets of 1.89-3.82 (standard 2.12).

‧ Thefulcrumat the rear suspension upper rodis5-step adjustable on both sides. The outer fulcrum is 4-step adjustable on both sides.

‧ Steel CVD axle of rear transmission system

‧ Suitable for long and short battery

‧ Full great smooth metal ball connectors

‧ Standard realistic caliper and disc shape brake set

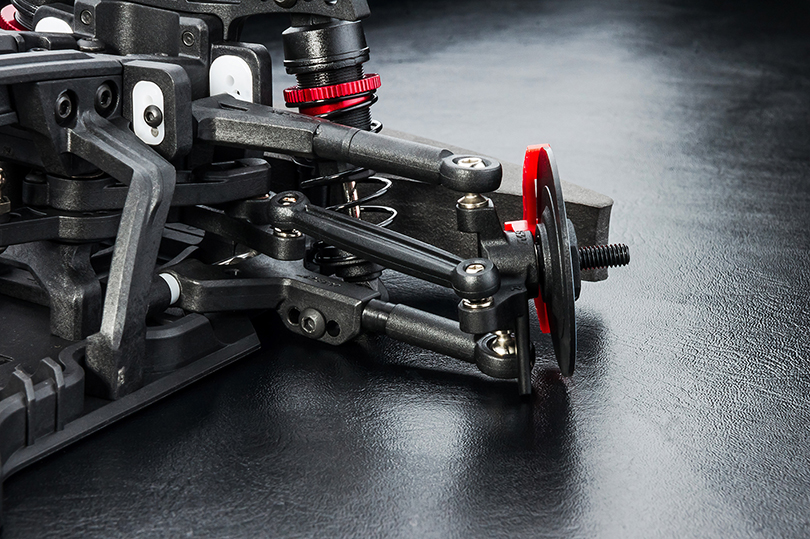

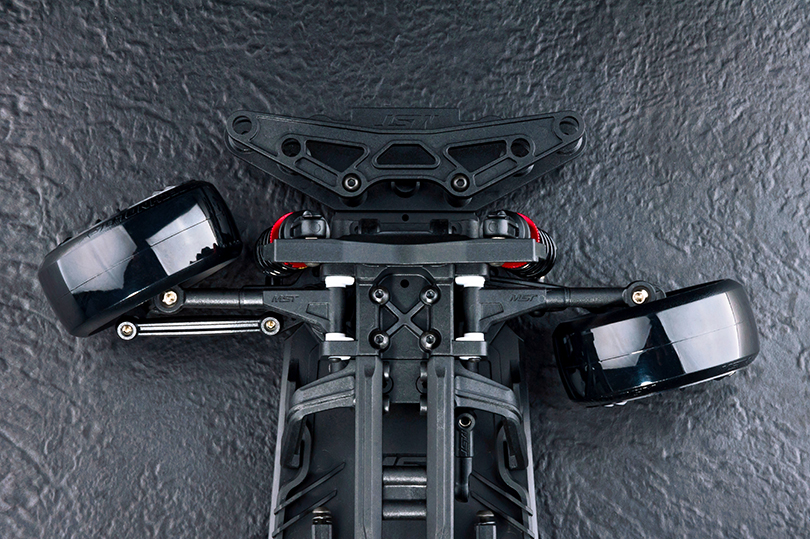

GREAT ANGLE FRONT STEERING

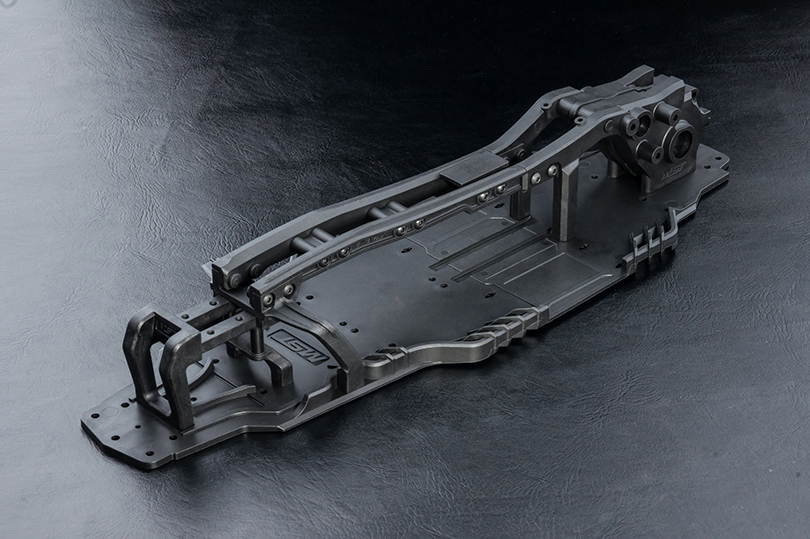

PLASTIC HIGH RIGIDITY CONSTRUCTIONS

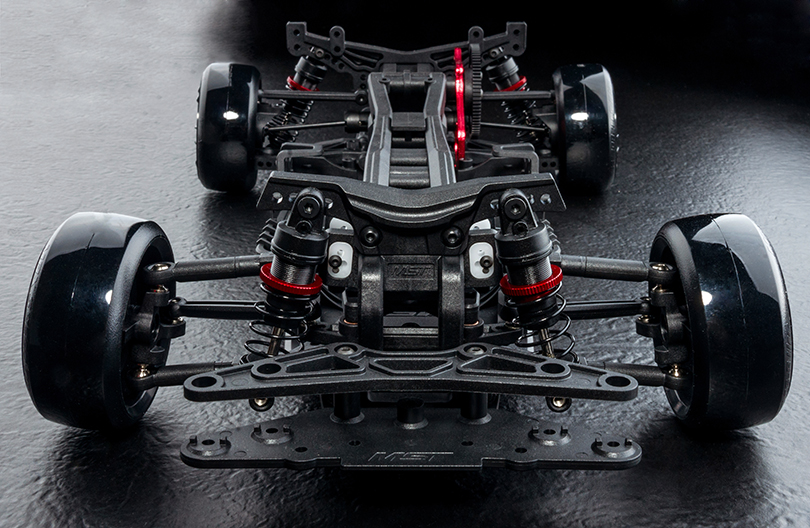

NEW DESIGNED FRONT GREAT-STEERING SUSPENSTION SYSTEM

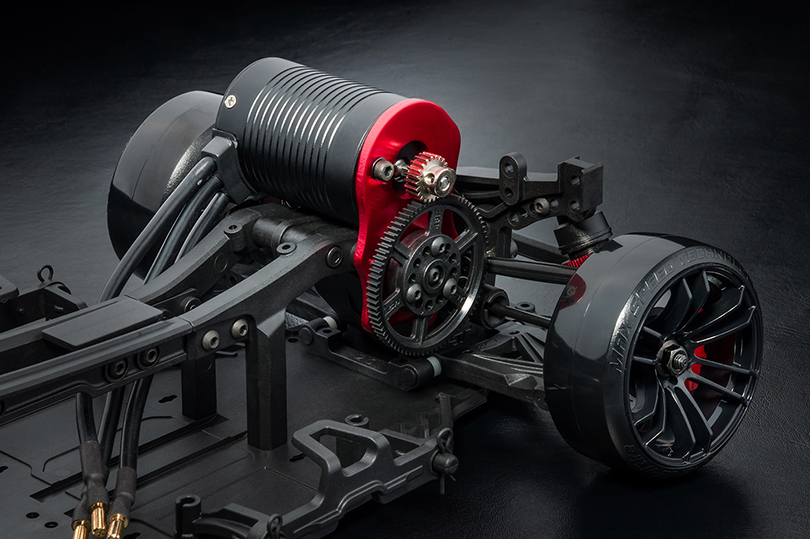

TWO INSTALL METHODS OF MOTOR MOUNT - UPPER OR LOWER GRAVITY

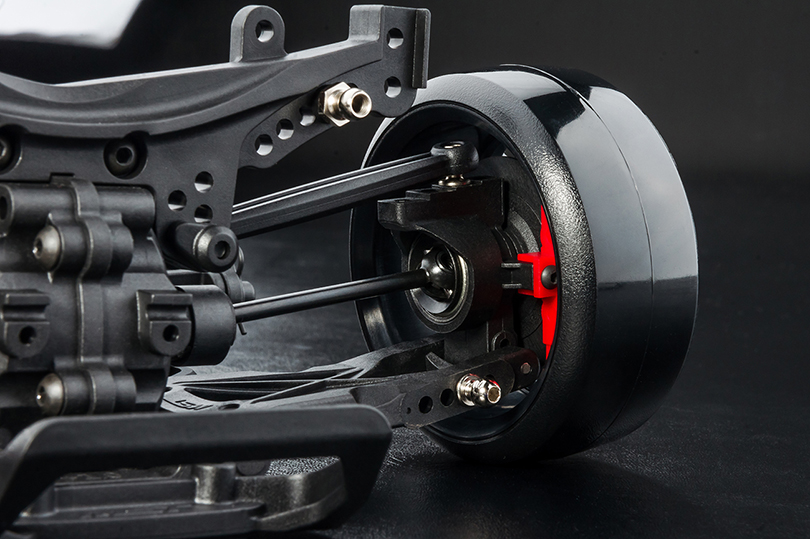

STEEL CVD AXLE OF REAR TRANSMISSION SYSTEM

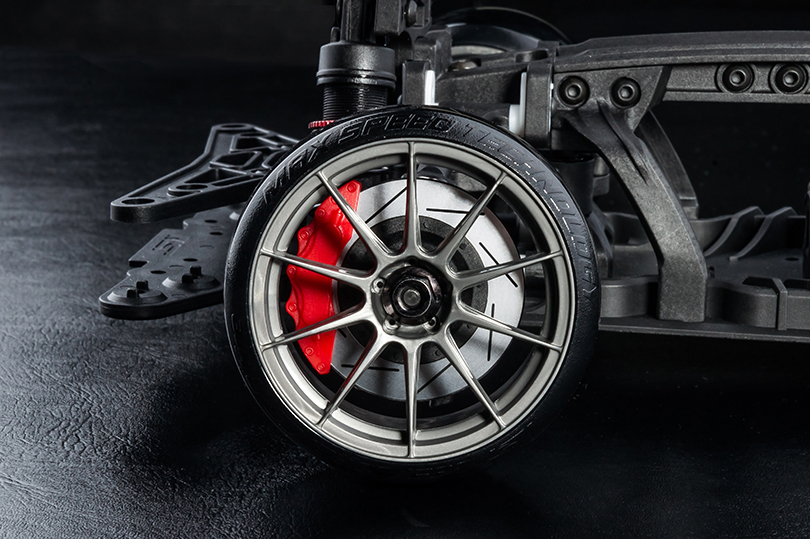

STANDARD REALISTIC CALIPER AND DISC SHAPE BRAKE SET
