543001C

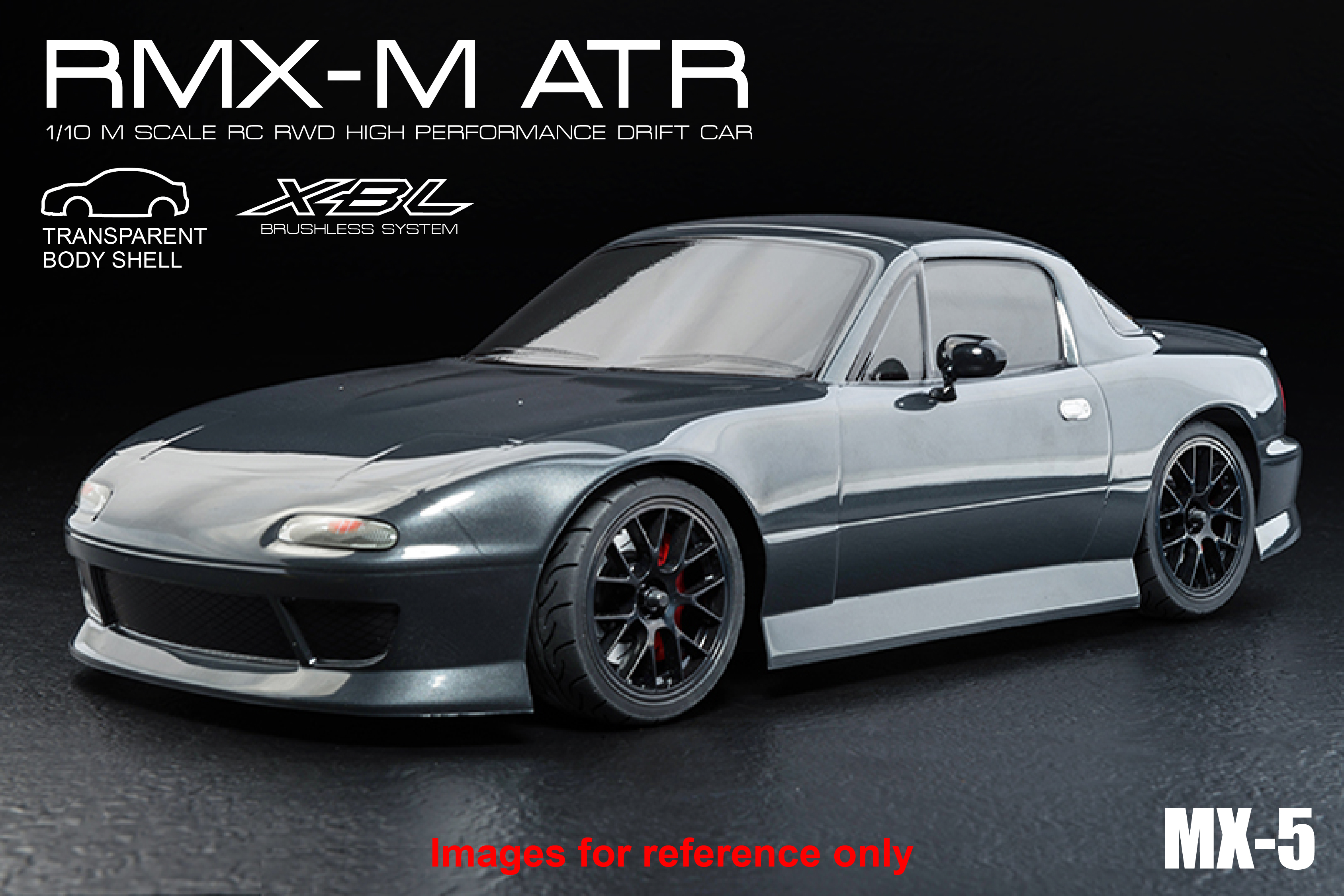

RMX-M ATR MX-5 (clear) (brushless)

SPECIFICATION

SPECIFICATION : 1/10 Drift Car

DRIVE MODE : MR/RR

WHEELBASE : 225-233mm

WIDTH :164mm (+3 offset) (adjustable)

CASTER : Adjustable 6/ 8/ 10/ 12 degrees

CAMBER : Adjustable 0 to -12 degrees

FULL BALL BEARING

HYDRAULIC DAMPER SET



Suitable for TAMIYA M car body shells

FEATURES

Designed with a professional M car drift chassis and factory settings, it provides entry-level players with an easy-to-control drifting experience while offering professional-level great-angle drifting capabilities and posture. Even as driving skills improve, the entire vehicle is equipped with a wide range of upgrade options, unlocking greater performance potential for the chassis.

Experienced players will truly appreciate the joy and unique drifting experience that comes from combining the M chassis with M car bodies.

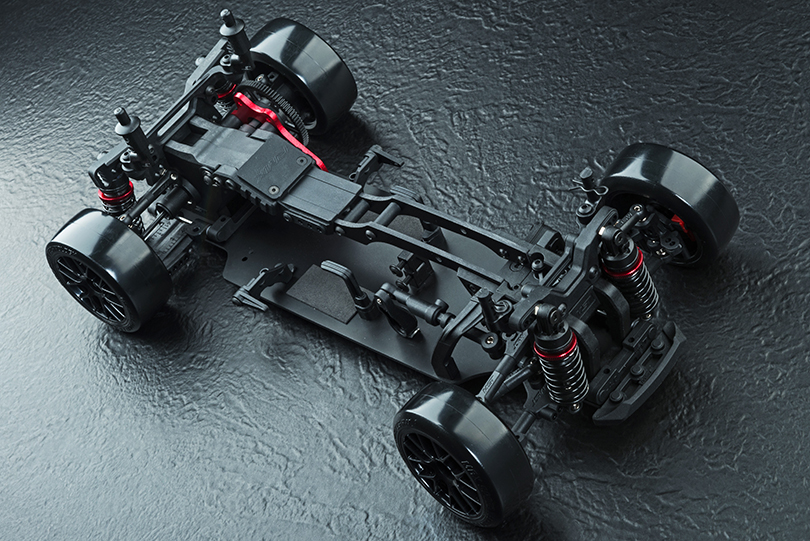

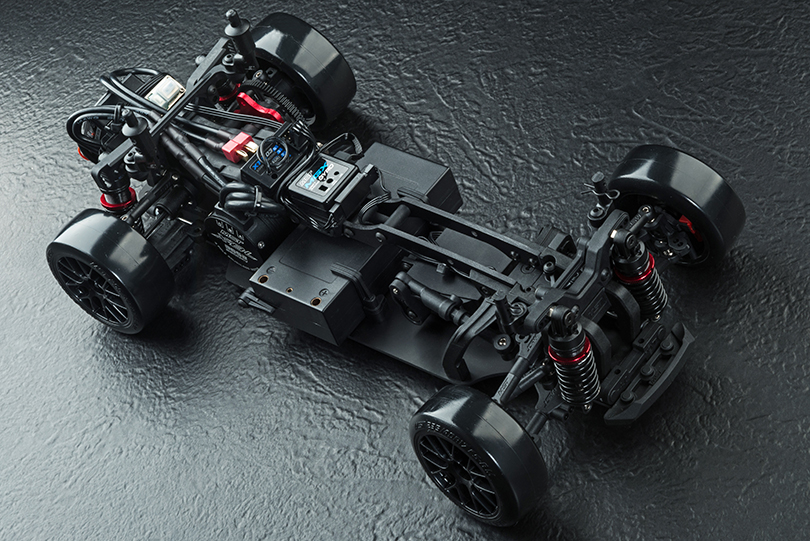

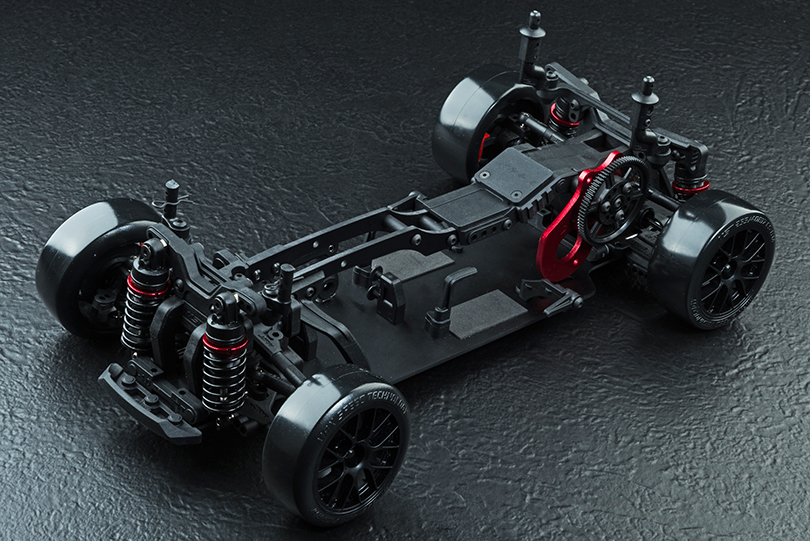

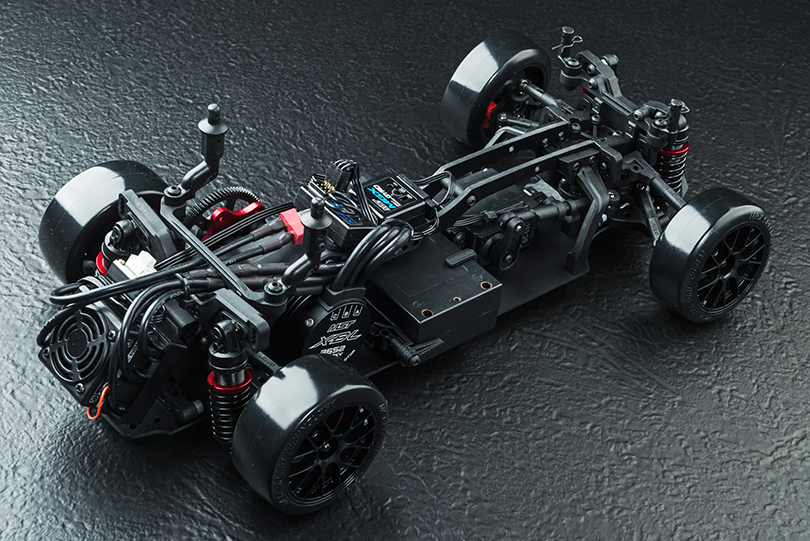

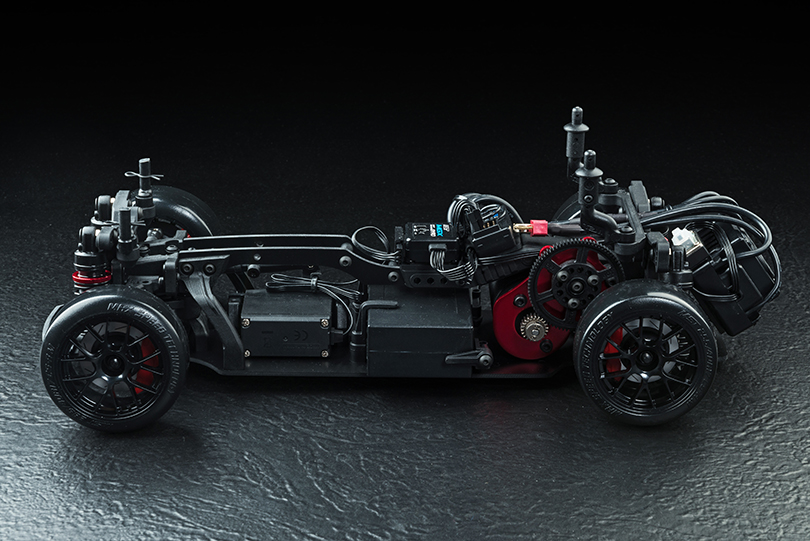

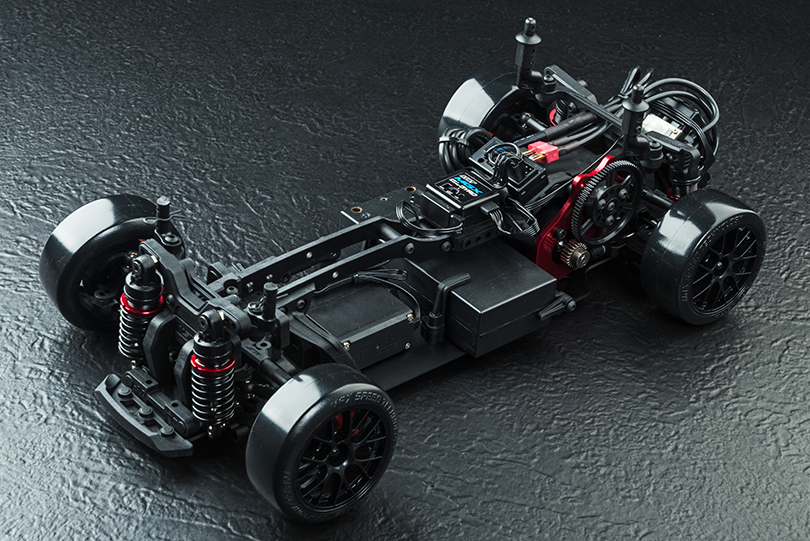

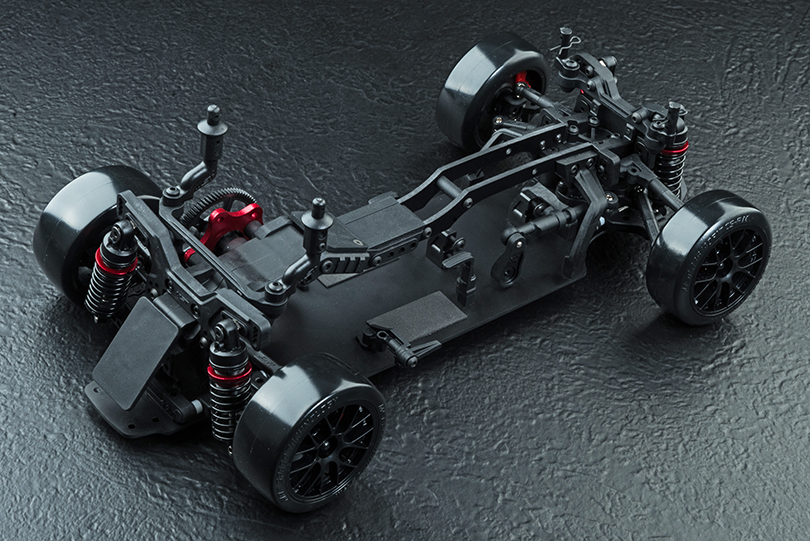

-FRP chassis / front vertical upper deck.



-With the RMX 2.5 spur gearbox, the 4-tooth MR drive mode can be switched to the 3-tooth RR drive mode.



-Initially come with the brand new ATK V2 upright is redesigned with the M drift car’s exclusive up/lower arm set.



-A large steering angle is specially designed for the RMX M drift car.



-First equipped with a newly designed THA adjustable length arm. The range is adjustable from 41 to 53 (PIN to PIN).



-The newly designed M tire & wheel with a smaller size. The construction of the rear tire is wider than the front tire can increase rear wheel traction.



-Two install methods of motor mount – upper or lower gravity deployment.



-Steel cvd axle of rear transmission system.



-Standard realistic caliper and disc shape brake set.



-Full ball bearing.



-Hydraulic damper set.











FRP chassis / front vertical upper deck.











With the RMX 2.5 spur gearbox, the 4-tooth MR drive mode can be switched to the 3-tooth RR drive mode.











Initially come with the brand new ATK V2 upright is redesigned with the M drift car’s exclusive up/lower arm set.











A large steering angle is specially designed for the RMX M drift car.











First equipped with a newly designed THA adjustable length arm. The range is adjustable from 41 to 53 (PIN to PIN).











The newly designed M tire & wheel with a smaller size. The construction of the rear tire is wider than the front tire can increase rear wheel traction.









Equipped with a hydraulic shock absorber for excellent handling stability.











Equipped with professional drift tire / realistic wheel / realistic brake caliper set.











XTR-03 2.4G

TRANSCEIVER SET











XBL BRUSHLESS

MOTOR - 2500KV











XBL50 BRUSHLESS ESC











MST SC-0352 SERVO











MGX GYRO





















MST OFFICIAL UPGRADE GUIDE
