553103C

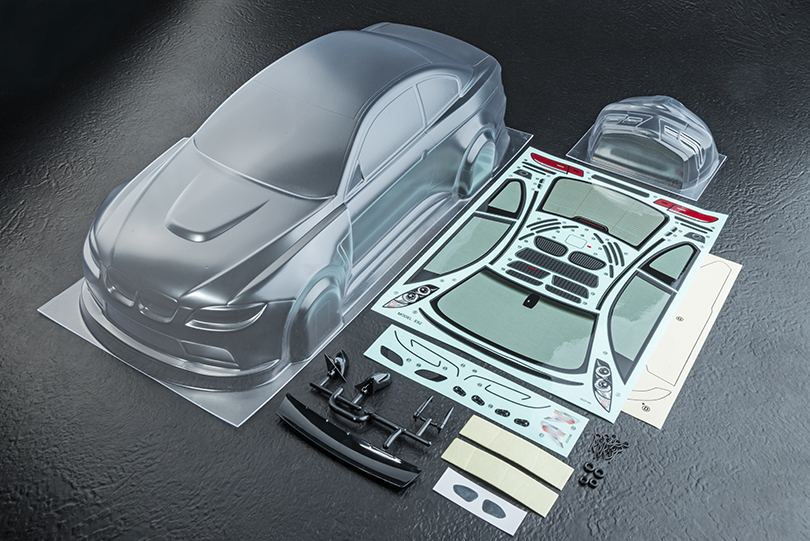

RMX 4 ATR E92 (Clear) -SB

SPECIFICATION

SCALE:  1/10 RWD Drift Car

ADJUSTABLE WHEELBASE:  257 / 266 / 275mm (adjustable +3mm / -1mm)

HEX-TO-HEX WIDTH:  Front 182mm / Rear 172mm

DRIVE MODE:  RWD (MR)

CASTER ANGLE:  Adjustable between 5.5° / 7°

CAMBER ANGLE:  Front 9.1° / Rear 2°

FULL BALL BEARINGS

HYDRAULIC DAMPER SET

Includes electronic components.

FEATURES

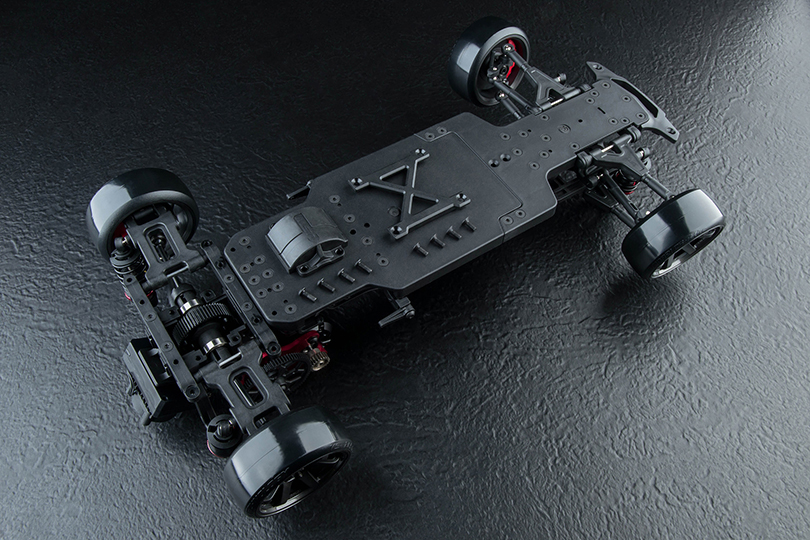

THE ULTIMATE CROSS-CLASS RTR DRIFT CAR

The next-generation RMX 4 RTR features a newly designed professional chassis and a proven factory drift setup, allowing drivers to quickly master high-angle drifting and refined drift control.

Fully compatible with a wide range of upgrade parts to continuously enhance performance and expand tuning potential.





- Three Adjustable Wheelbase Options (257 / 266 / 275mm) for versatile body compatibility.

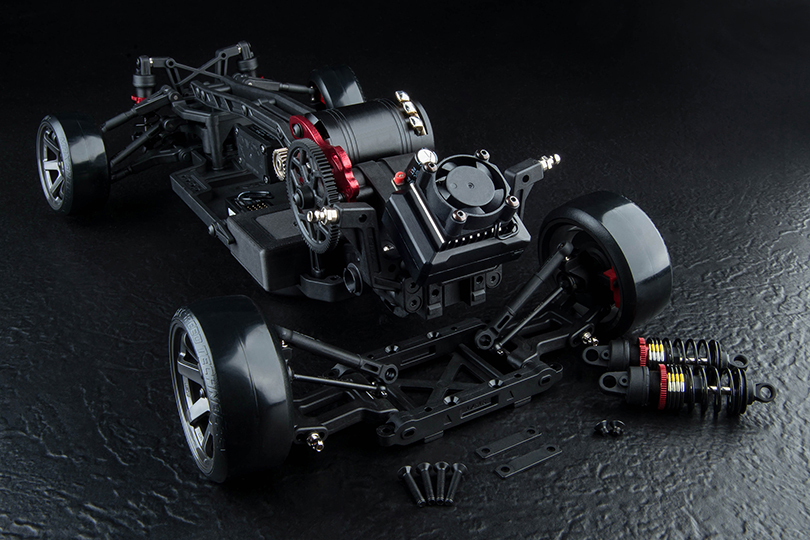

- Innovative Subframe Design enables quick and easy removal of the rear suspension system.



- New Short Rear Suspension Arms enhance lateral weight transfer for improved stability and control.



- Quick-Release Gearbox Design for simplified maintenance and differential access.

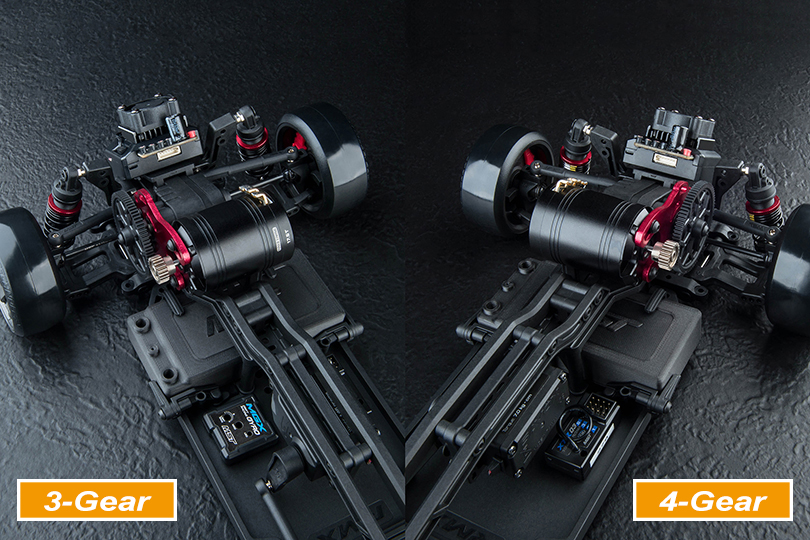

- 4-gear reverse-torque transmission design, convertible to 3-gear forward-torque layout without additional parts.



- Triple-Level Adjustable Motor Position to fine-tune chassis balance and center of gravity.



- ESC mount supports both high and low CG installation options.

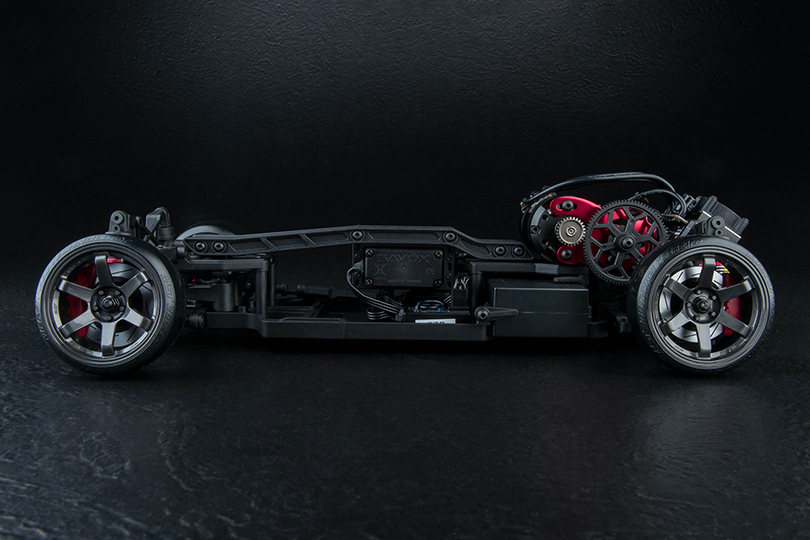

- Torsion-Type Dual Vertical Deck Layout improves longitudinal rigidity while maintaining optimal lateral flex.

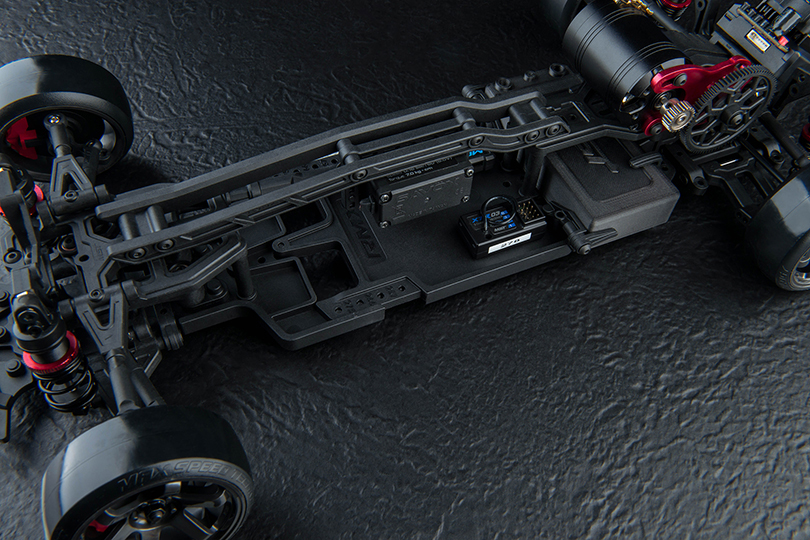

- Floating Servo Mount Design prevents interference between servo and chassis flex during cornering.



- New Steering Arm System with fine Ackermann adjustment and built-in 3° caster angle to reduce steering pump.

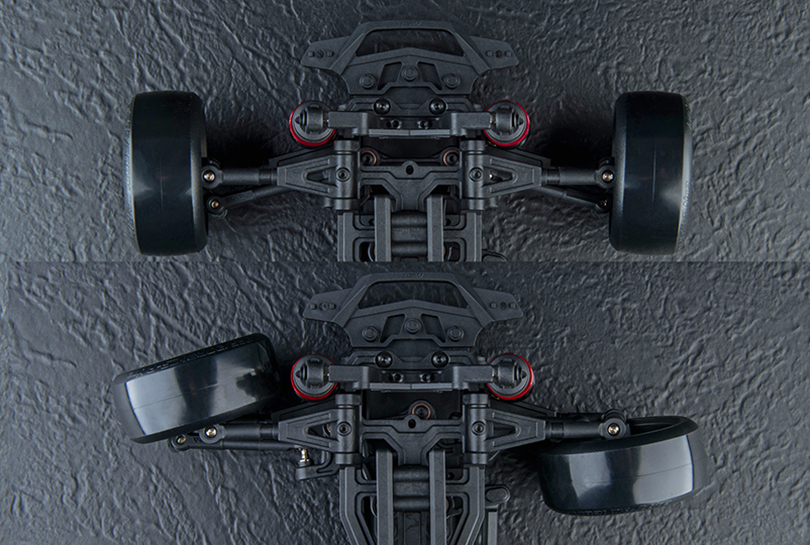

- Newly designed ATK V3 high-angle drift steering knuckles for agile initial turn-in and extreme steering angle at full lock.



- Lightweight One-Piece Front Bulkhead Assembly for simple and efficient installation.



- New Front Upper & Lower Arms with simplified installation and dual-position caster adjustment.



- Bullhorn-Style Shock Towers at both front and rear allow for infinitely adjustable shock angles.



- Hydraulic dampers with newly developed DK hard-series competition short springs.



- Lightweight Quick-Release Battery Mount supports both standard and low-profile shorty LiPos.



- All plastic components are constructed from glass fiber reinforced nylon to maintain optimal rigidity throughout the chassis.









-Three Adjustable Wheelbase Options (257 / 266 / 275mm) for versatile body compatibility.













-Innovative Subframe Design enables quick and easy removal of the rear suspension system.

-New Short Rear Suspension Arms enhance lateral weight transfer for improved stability and control.













-Quick-Release Gearbox Design for simplified maintenance and differential access.













-Anti-Torque 4-Gear Transmission included; easily convertible to a standard 3-gear layout for torque-positive setup.













-Triple-Level Adjustable Motor Position to fine-tune chassis balance and center of gravity.













-ESC mount supports both high and low CG installation options.













-Torsion-Type Dual Vertical Deck Layout improves longitudinal rigidity while maintaining optimal lateral flex.

-Floating Servo Mount Design prevents interference between servo and chassis flex during cornering.









-New Steering Arm System with fine Ackermann adjustment and built-in 3° caster angle to reduce steering pump.

-All-New ATK V3 Knuckle Set optimized for large steering angles; 0° trail for fast initial response, wide throw for maximum drift angle.













-Lightweight One-Piece Front Bulkhead Assembly for simple and efficient installation.

-New Front Upper & Lower Arms with simplified installation and dual-position caster adjustment.













-Bullhorn-Style Shock Towers at both front and rear allow for infinitely adjustable shock angles.













-Hydraulic Damper Set + New Progressive DK Short Springs included.























- XTR-03 2.4G TRANSCEIVER SET.













- XBLS S60A SENSORED ESC.

- XBLS 17.5T SENSORED BRUSHLESS MOTOR.













- B-07MG SERVO.













- MGX PROFESSIONAL DRIFT GYRO.













- REALISTIC STREET TIRE INCLUDED.













- Configured with high-performance specific gravity frame greatly improves rear-wheel traction and increases propulsion acceleration.
