601011

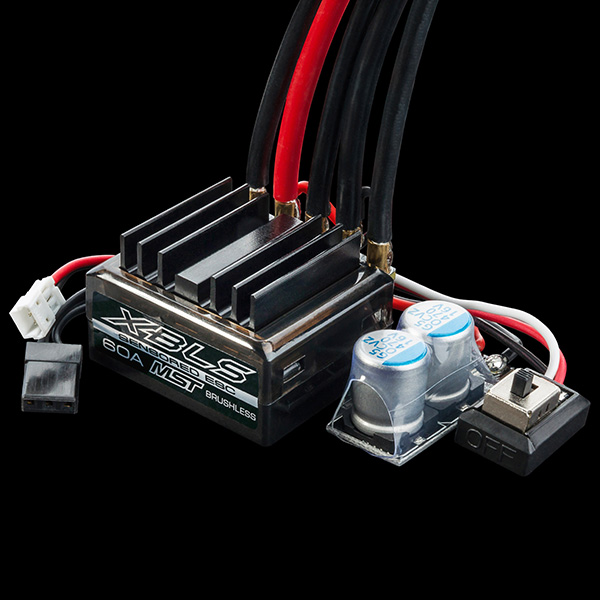

XBLS sensored brushless ESC 60A
SPECIFICATION
Cont. / Burst Current | 60A / 360A | |
Suitable Car |
1/10, 1/12 on-road & off-road 1/8, 1/10 scale rock crawler |
|
Suitable Motor | Sensored and sensorless brushless motors | |
Motor Turns | 4-6cells NiMH or 2S Lipo | ≧ 5.5T (1/10 on-road), ≧ 8.5T (1/10 off-road) |
8-9cells NiMH or 3S Lipo | ≧ 10.5T (1/10 on-road), ≧ 17.5T (1/10 off-road) | |
Resistance | 0.0006 ohm | |
Battery | 4-9 cells NiMH or 2-3 cells Lipo | |
BEC Output | 6V @ 2A, Built-in BEC ( Switching mode DC-DC regulator ) | |
Dimension | 33mm(L)*28mm(W)*31.5mm(H) ( Cooling fan included ) | |
Weight | 61g ( Cooling fan NOT included ) | |
Cooling Fan Working Voltage | 5V @ 0.16A ( The fan gets its power supply from the built-in BEC ) |
FEATURES
■ Smart and small; Drivers sensored and sensorless motors.
■ The most advanced competition firmware with perfect control feeling.
■ User Programmable :
1) | 3 running modes ( Forward mode, Foward / Reverse mode, Rock Crawler mode ) |
2) | 9 start modes ( Also called "punch" ) from "very soft (Level 1)" to "very aggressive (Level 9)" |
3) | Multiple protection features : Low voltage cut-off protection / Over-heat protection / throttle signal loss protection / motor blocked protection. |
