601002

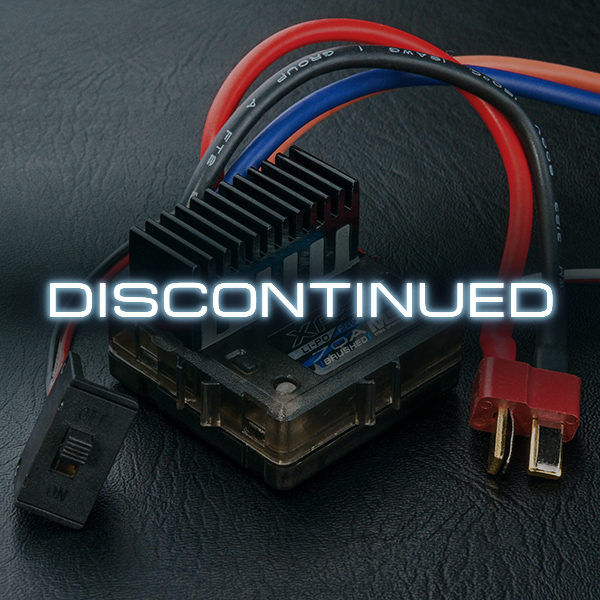

XFS-15 ESC 70A (Li-Po protection)

SPECIFICATION

■ INPUT VOLTAGE :  7.2V~8.4V(Ni-Cd/MH)  /  7.4V(Li-Po)  /  6.6V(Li-Fe)

        1) Cell number NiCd / NiMH :  6 or 7 ( 7.2V / 8.4V ), but there is no integrated

                                                        LiPo low voltage protection!

        2) Cell number LiPo : 2 ( 7.4V )

        3) Cell number LiFe : 2 ( 6.6V )

■ OUTPUT :

   Forward Rating 70A Peak : 500A / 10sec, Backward Rating : 100A ( FET specified )

   Steady current ( Forwards ) : 5minutes / 70A, 30 seconds / 80A, 1 second / 106A

   Steady current ( Backwards ) : 5minutes / 35A, 30 seconds / 40A, 1 second / 53A

■ OUT MAX POWER : 504W  BEC 5V 1A ( MAX 1.5A )

■ SIZE / WEIGHT :  49.2mm X 32.4mm X 26.3mm  /  62g

■ MOTOR LIMIT :  15 turns [ ≦ 7.2V ( 6 cells ) ], 17 turns [ 8.4V ( 7 cells ) ]

■ PULSE FREQUENCY :  1 KHz
