841015

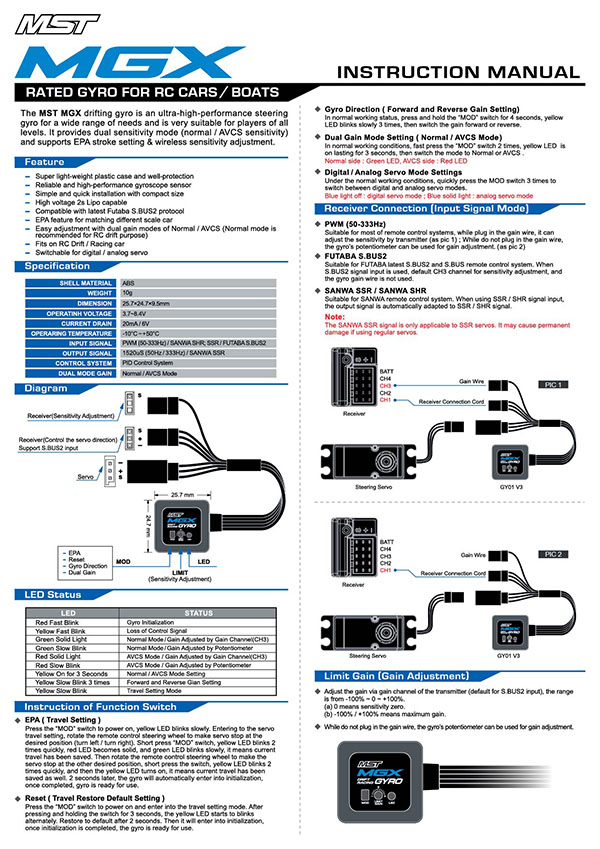

MST MGX Gyro
SPECIFICATION
SHELL MATERIAL: ABS
WEIGHT : 10g
DIMENSION: 25.7×24.7×9.5mm
OPERATINH VOLTAGE: 3.7~8.4V
CURRENT DRAIN: 20mA / 6V
OPERARING TEMPERATURE: -10°C~+50°C
INPUT SIGNAL: PWM (50-333Hz) / SANWA SHR; SSR/ FUTABA S.BUS2
OUTPUT SIGNAL: 1520uS (50Hz/ 333Hz) / SANWA SSR
CONTROL SYSTEM: PID Control System
DUAL MODE GAIN: Normal / AVCS Mode
FEATURES
Super light-weight plastic case and well-protection
Reliable and high-performance gyroscope sensor
Simple and quick installation with compact size
High voltage 2s Lipo capable
Compatible with latest Futaba S.BUS2 protocol
EPA feature for matching different scale car
Easy adjustment with dual gain modes of Normal / AVCS (Normal mode is recommended for RC drift purpose)
Fits on RC Drift / Racing car
Switchable for digital / analog servo
