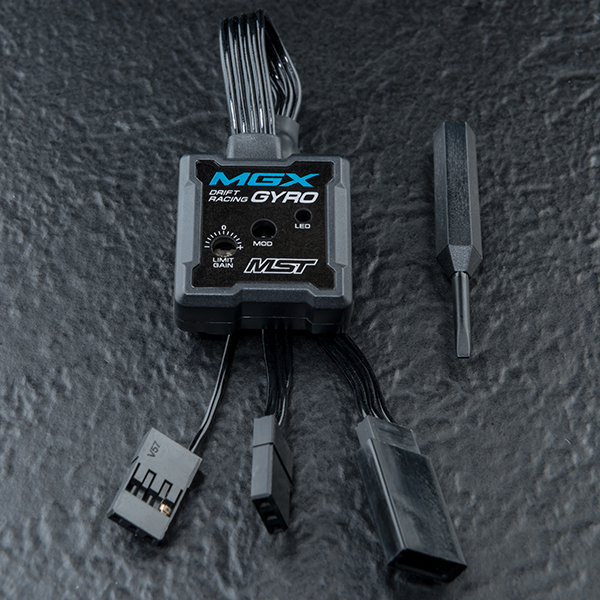

MST MGX Gyro

SPECIFICATION

SHELL MATERIAL: ABS

WEIGHT : 10g

DIMENSION:  27×25×9mm

OPERATINH VOLTAGE:  3.7~8.4V

CURRENT DRAIN:  20mA / 6V

OPERARING TEMPERATURE:  -10°C~+50°C

INPUT SIGNAL:   PWM (50-333Hz) / SANWA SHR; SSR/ FUTABA S.BUS2

OUTPUT SIGNAL:  1520uS (50Hz/ 333Hz) / SANWA SSR

CONTROL SYSTEM:  PID Control System

DUAL MODE GAIN:   Normal / AVCS Mode

FEATURES

Super light weighe plastic case and well-protection

Reliable and high-performance gyroscope sensor

Simple and quick installation with compact size

High voltage 2s Lipo capable

Easy adjustment with dual gain modes

EPA feature for matching different scale car models

Compatible with latest Futaba S.BUS2 protocol

Perfect for RC Competition Drifting Cars and Boats

Compatible with digital/analog servo
