601018

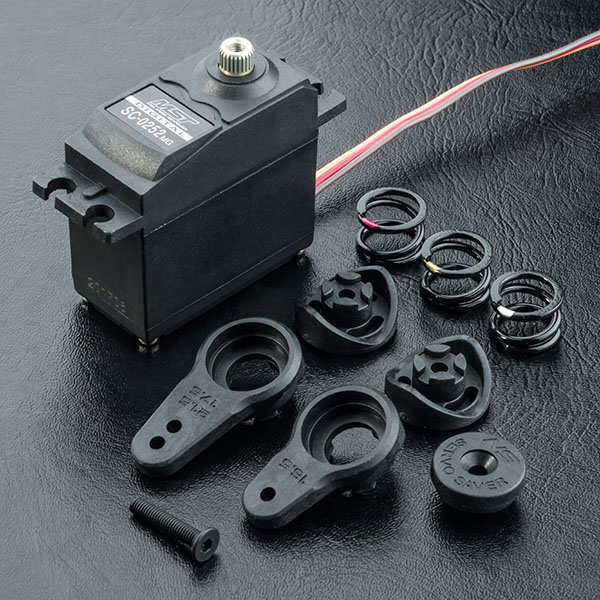

MST SC-0252MG Servo

SPECIFICATION

For

ALL OFF-ROAD



          VOLTS            TORQUE               SPEED

            4.8V               7.2kg-cm            0.23 sec/60º

            6.0V              10.5kg-cm           0.19 sec/60º



DIMENSIONS :  40.7 X 20 X 39.4 / 49g

OUTPUT SHAFT :  25T Spline

FREQUENCY RANGE :  200 ~ 250Hz

FEATURES

■ Leading edge digital servo technology

■ Strong 3-Pole Brushed motor

■ Accurate and fast response

■ Fine resolution

■ Composite case

■ Ball beared

■ Precision Metal gears
