820150R

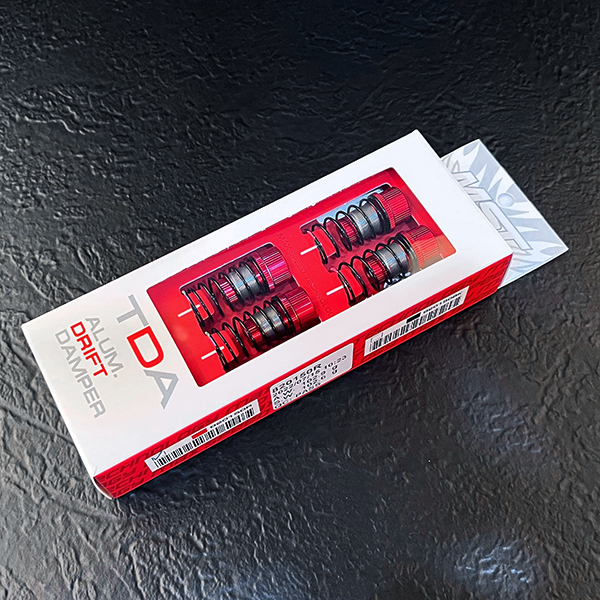

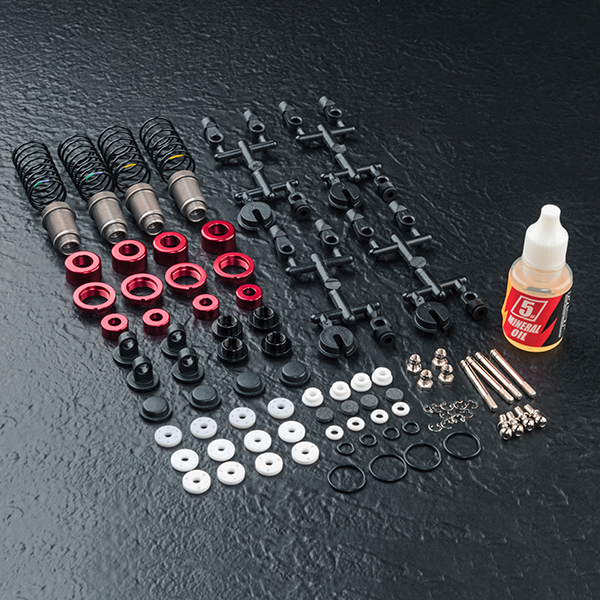

TDA Alum. Drift damper set (red) (4)

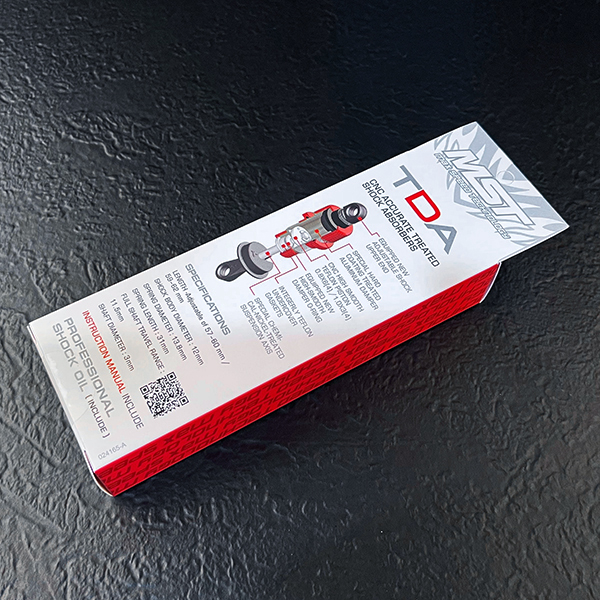

SPECIFICATION
LENGTH -Adjustable of 57–60 mm / 59–62 mm
PISTON HOLE : 0.8×6 / 1.0×3 / 1.2×3
SHOCK BODY DIAMETER : 12mm
SPRING DIAMETER : 13.8mm
SPRING LENGTH : 31mm
FULL SHAFT TRAVEL RANGE : 11.5mm
SHAFT DIAMETER : 3mmSPECIFICATIONS
FEATURES
TDA Drift damper is specific for RWD drift car purpose
1- CNC ACCURATE TREATED SHOCK ABSORBERS
2- EQUIPPED New adjustable shock upper end.
Best efficient adjusting method for grip!
Quickly change the car grip force by adjusting the length of the shocks!
3- SPECIAL HARD COATING TREATED ALUMINUM DAMPER
4- CNC HIGH SMOOTH TEFLON PISTON 0.8X6(4) / 1.0X3(4)
It is recommended to combine the Front 1.0X3 of the piston hole with the rear 0.8X6 to obtain a stabler handling experience and excellent out-of-curve acceleration performance.
5- EQUIPPED New High-smooth damper O-ring
Smooth suspension actuation makes the car center of gravity shift more smoothly and restores the preset car height more accurately.
6- INTEGERLY TEFLON UNDERCOVER GASKETS
7- SPECIAL CHEMICAL-NICKEL-TREATED SUSPENSION AXIS
INSTRUCTION MANUAL
TDA Drift damper is specific for RWD drift car purpose
1- CNC ACCURATE TREATED SHOCK ABSORBERS
2- EQUIPPED New adjustable shock upper end.
Best efficient adjusting method for grip!
Quickly change the car grip force by adjusting the length of the shocks!
3- SPECIAL HARD COATING TREATED ALUMINUM DAMPER
4- CNC HIGH SMOOTH TEFLON PISTON 0.8X6(4) / 1.0X3(4)
It is recommended to combine the Front 1.0X3 of the piston hole with the rear 0.8X6 to obtain a stabler handling experience and excellent out-of-curve acceleration performance.
5- EQUIPPED New High-smooth damper O-ring
Smooth suspension actuation makes the car center of gravity shift more smoothly and restores the preset car height more accurately.
6- INTEGERLY TEFLON UNDERCOVER GASKETS
7- SPECIAL CHEMICAL-NICKEL-TREATED SUSPENSION AXIS
